Description

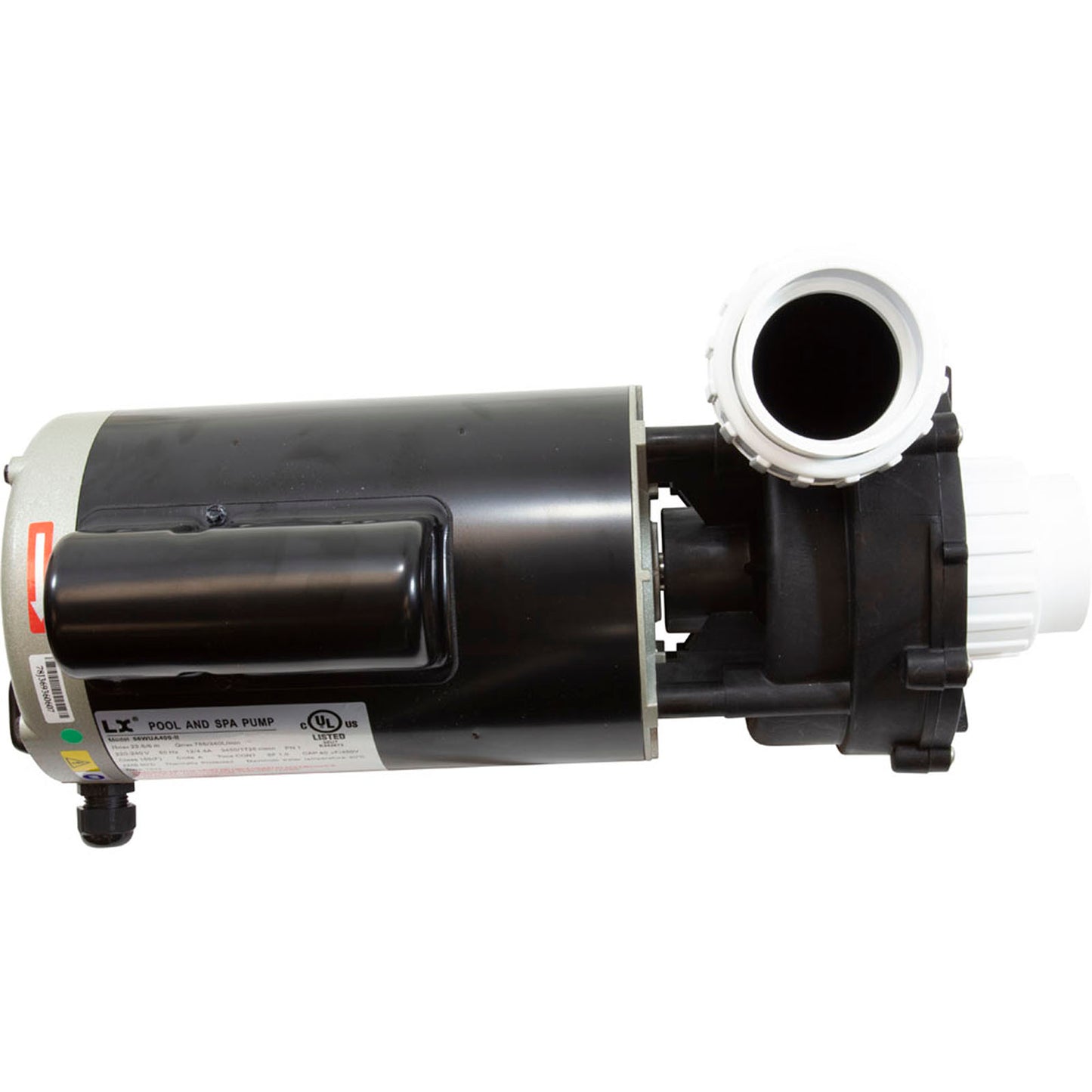

This model LX pump is commonly used to replace Aqua Flo XP2e, 4.0 HP 56 frame pump and Energy Saver 430-0052, 2 speed, 2" inlet, 2" discharge pumps.
Dimensions: 16-7/16"L x 8-3/4"W x 8-7/8"H
Product Specifications:
Manufacturer
Lingxiao (LX) Pump
Pump Model
56WUA
Speed
2 Speed (2-Spd)
Motor Voltage
230v
Drain Plug Location
3,6,9 o`clock
Suction Style
Center
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2"
Discharge Style
Side
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
4.0hp
Motor Frame
56 Frame Thru-Bolt
Motor Amperage/Wattage
12.0A/4.4A
Warranty Information
12 Months
Other Details
