LX 56WUA 4.0HP 1-Speed Pump, 230V, 56Fr, 2" MBT, Bracketless (56WUA400-I(NF))
LX 56WUA 4.0HP 1-Speed Pump, 230V, 56Fr, 2" MBT, Bracketless (56WUA400-I(NF))
31 in stock
Ships from: Bloomfield, CT
Genuine OEM product, sold with full manufacturer warranty support.
- Today Shipping 3 hrs 6 mins left
- 30 days ReturnsPolicy
- 12 Months Warranty Manufacturer
Frequently Bought Together
Product Information
Description
- Lingxiao LX 56WUA
- 4.0 HP, 230V
- 2 in MBT Ports
- Free Shipping

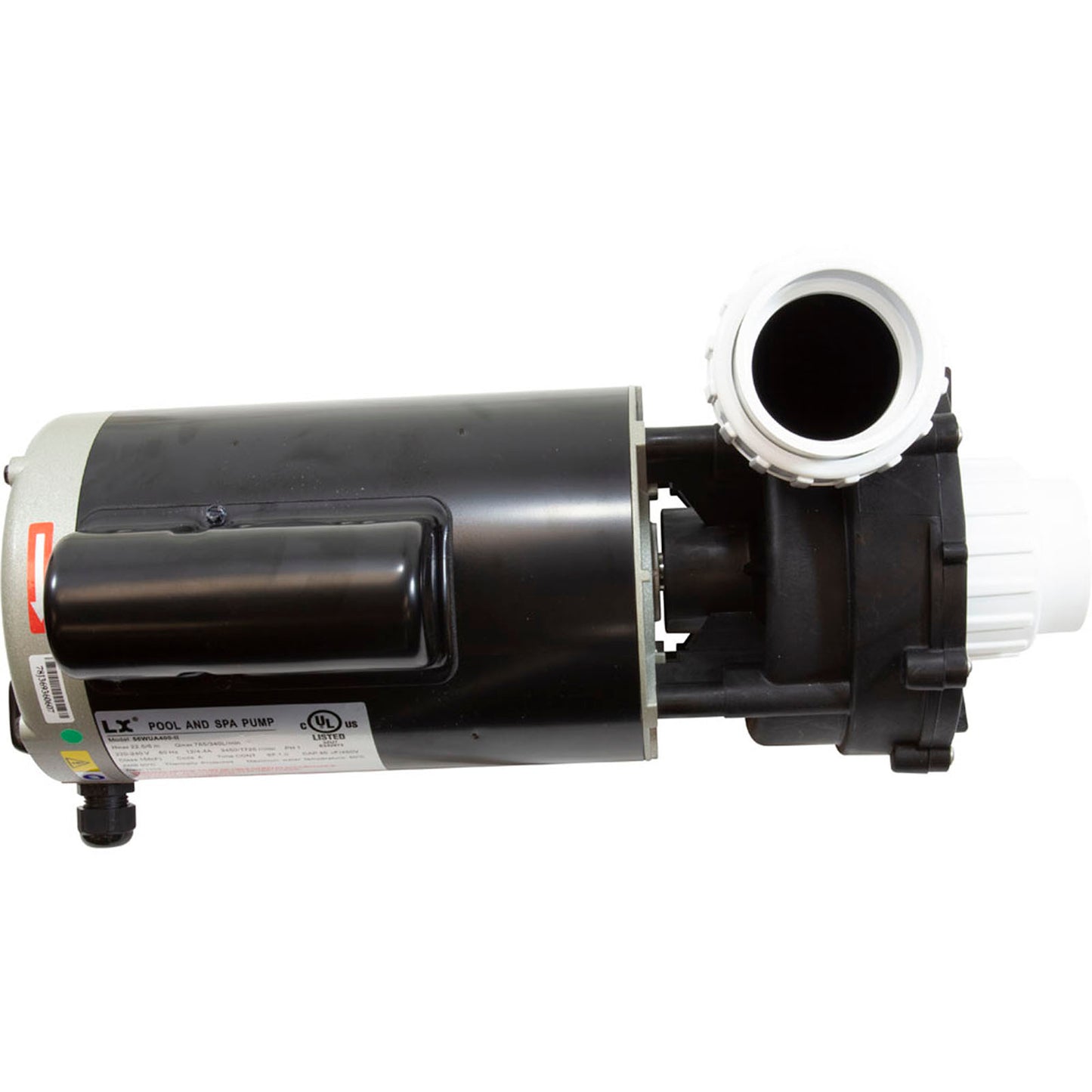

Lingxiao LX 56WUA 4.0 HP 1-Speed Pump, 230V, 56 Frame, 2 in MBT, Bracketless
A commonly used Sundance 4.0 HP pump replacement.
The Lingxiao LX 56WUA400-I(NF) pump (SKU PST-34-343-3060) is a 4.0 hp, 230v, 1-speed pump with a 56 frame thru-bolt motor and 2 in male buttress thread (MBT) ports, listed as bracketless. This LX pump is commonly used to replace the Sundance 4.0 HP 56 frame, 1-speed pump with a 2 in inlet and a 2 in discharge.
Why PST Customers Pick This
Sundance 4.0 HP Replacement
This LX model is commonly used to replace the Sundance 4.0 HP 56 frame, 1-speed pump with a 2 in inlet and a 2 in discharge.
2 in MBT Ports
Both the suction and the discharge are 2 in male buttress thread (MBT), with a center suction and a side discharge.
56 Frame Thru-Bolt Motor
A 56 frame thru-bolt motor rated 4.0 hp at 230v and 12.0A, running on a single speed.
Bracketless Version
This version of the LX 56WUA 4.0 hp pump is listed as bracketless.
Drain Plugs at 3, 6 and 9
The drain plug location is listed as 3, 6 and 9 o'clock.
Specifications
| Identification | |
|---|---|
| Manufacturer | Lingxiao (LX) Pump |
| Pump Model | 56WUA |
| Part Number | 56WUA400-I(NF) |
| SKU | PST-34-343-3060 |
| Version | Bracketless |
| Motor | |
| Horsepower | 4.0 hp |
| Motor Voltage | 230v |
| Speed | 1 speed |
| Motor Amperage | 12.0A |
| Motor Frame | 56 frame, thru-bolt |
| Plumbing | |
| Suction Pipe Size | 2 in |
| Suction Connection | Male buttress thread (MBT) |
| Suction Style | Center |
| Discharge Pipe Size | 2 in |
| Discharge Connection | Male buttress thread (MBT) |
| Discharge Style | Side |
| Drain Plug Location | 3, 6 and 9 o'clock |
Frequently Asked Questions
What pump does this replace?
This LX pump is commonly used to replace the Sundance 4.0 HP 56 frame pump, 1 speed, with a 2 in inlet and a 2 in discharge.
What are the connection sizes?
Both the suction and the discharge are 2 in male buttress thread (MBT). The suction is a center suction and the discharge is a side discharge.
What are the motor specs?
It is listed at 4.0 hp, 230v, 12.0A, with a single speed and a 56 frame thru-bolt motor.
Order the LX 56WUA400-I(NF) From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Commonly Used Sundance Replacement
Additional Info
| Category | Pool Products Pool Pumps Single Speed Pumps |
| SKU | PST-34-343-3060 |
| MPN | 56WUA400-I(NF) |
| Replaces | 390618, 6500-352, 6500-363, 6500-365 |
| Manufacturer | Lingxiao Pump |
| Weight | 38.1 lb |
