Description
Used on Sundance Spas made before 7/11/2011.

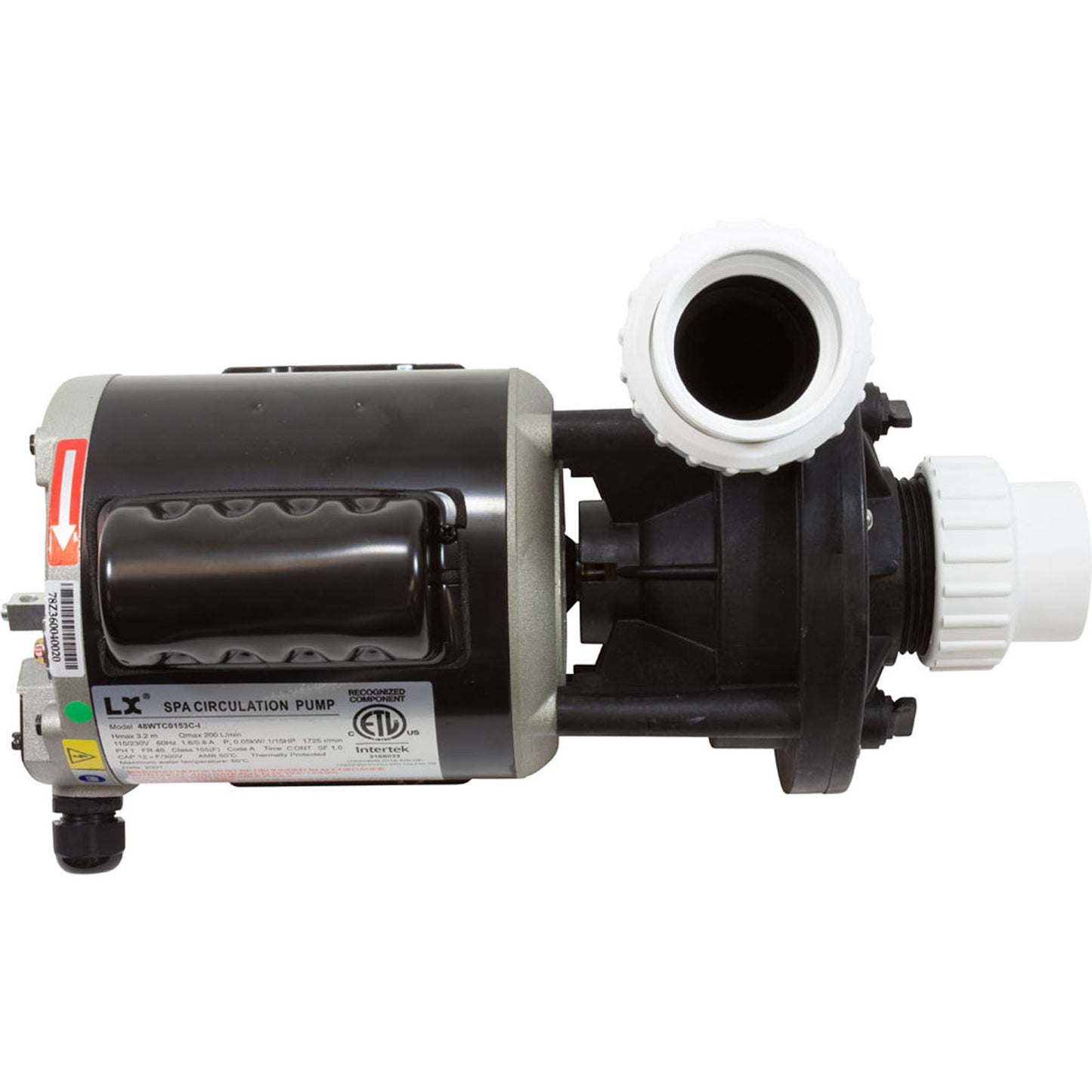

This model LX pump is commonly used to replace Aquaflo CMHP 1/15hp, 115v/230v, 1 speed 48 frame 1-1/2" inlet 1-1/2" discharge pumps.
Dimensions: 12-7/8"L x 7"W x 8-1/4"H
Product Specifications:
Accessory Pump Type
Circulation
Manufacturer
Lingxiao-Pump
Pump Model
WTC
Speed
1 Speed (1-Spd)
Motor Voltage
115v/230v
Drain Plug Location
6,9 o`clock
Suction Style
Center
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
1-1/2"
Discharge Style
Side
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
1-1/2"
Horsepower
1/15hp
Motor Frame
48 Frame Thru-Bolt
Motor Amperage/Wattage
1.6A/0.8A
Warranty Information
12 Months
Other Details
