You just spent $700–$1,200 on a brand-new Hayward AquaRite salt cell — and chlorine production is zero, or your “Inspect Cell” warning is back already, or the cell shows “No Flow” even though the pump is running. Before you call the warranty line, work through this list. About 80% of “new cell not working” tickets are actually one of five fixable causes, not a defective cell.
1. Confirm salt level (with a separate test, not the cell readout)

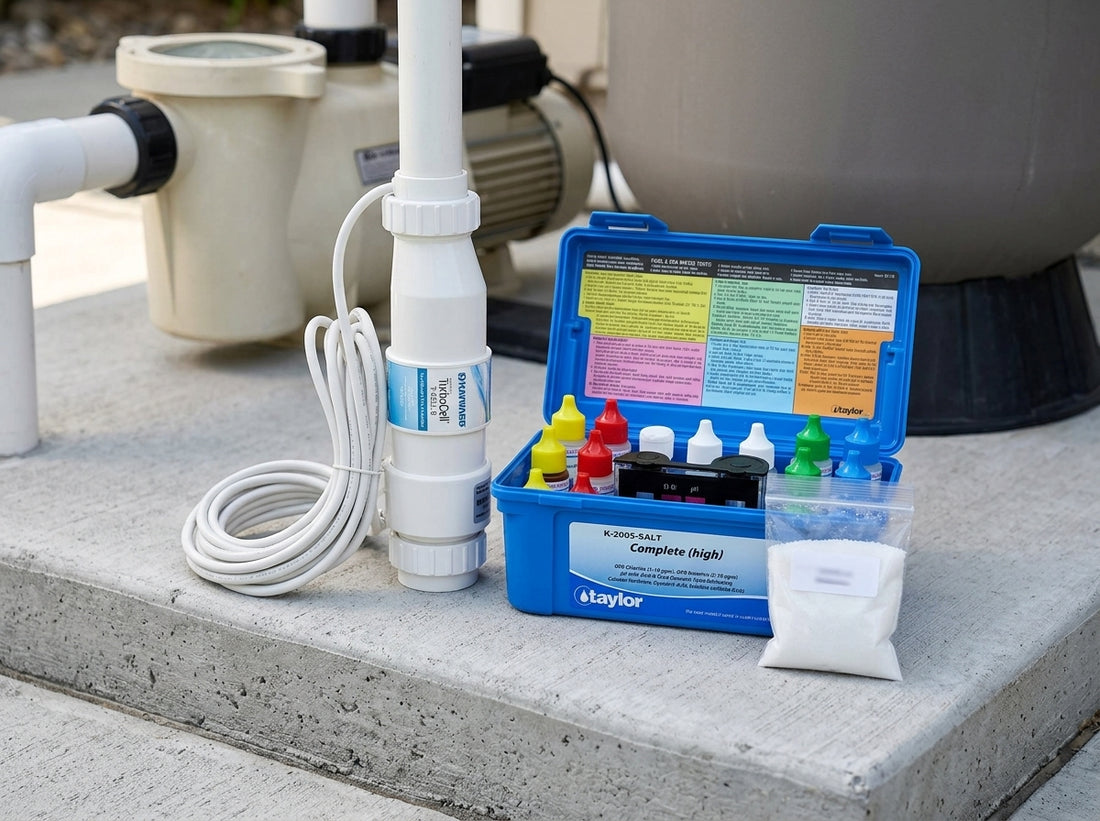

A new cell needs 2,700–3,400 ppm of salt in the water to generate chlorine. The AquaRite’s built-in salt reading is approximate and can be 200–500 ppm off, especially during the first few hours after a salt addition. Use a separate salt test strip or kit to confirm actual salinity.
If salt is below 2,700 ppm, the cell will display “Low Salt” or simply produce no chlorine. Add salt per our add-salt tutorial and wait 24 hours for it to dissolve before retesting.
2. Check water temperature
Salt cells stop producing below 60°F (15°C). If you just opened the pool in early spring and the water is cold, the cell may be working perfectly but suppressed by temperature. The AquaRite has a built-in cold-water cutoff and will resume normal production once water hits ~60°F.
3. Verify stabilizer (cyanuric acid) is 60–80 ppm
This is the most overlooked cause. Salt-pool chlorine is generated continuously at a low rate — without enough stabilizer, UV destroys it as fast as the cell makes it. You’ll see zero free chlorine even with a cell that’s working fine. Salt pools need 60–80 ppm cyanuric acid (higher than the 30–50 ppm range for traditional chlorine pools). Test and add stabilizer if low.
Durachlor 2 Lb Chlorine Stabilizer
Shop Now
Taylor K-2005 Salt Test Kit
Shop Now
Hayward T-CELL-9 (up to 25,000 gal)
Shop Now4. “No Flow” or flow-switch faults
If the AquaRite displays “No Flow” or won’t generate even though the pump is running:
Check the return jets. If flow is weak, see our low water flow troubleshooting before blaming the cell.
The flow switch must be installed AFTER the filter and BEFORE the cell, with the arrow pointing in the direction of water flow. Installed backward or in the wrong location and you’ll get permanent “No Flow” even at full pump output.
Pull the switch out (one cable, two unions). Inside is a small paddle. Tap the paddle and confirm it moves freely. A stuck paddle = a stuck switch. Replace.
5. Bad wiring at the cell connector
The cell cord has 4 wires. If any of them are corroded, loose, or chewed by a critter, the cell can’t generate. Disconnect the cell cord from the AquaRite control box and inspect the pins inside the connector. Green corrosion is the giveaway. Clean with electrical contact cleaner or replace the cord if the corrosion is severe.
If “Inspect Cell” lights up on a brand-new cell
The “Inspect Cell” warning on a new cell is almost always one of three things:
- Wrong cell size programmed. The AquaRite needs to know whether you installed a T-CELL-3, T-CELL-9, or T-CELL-15. Press and hold the “Diagnostic” button to cycle through and confirm the correct size is selected.
- Salt below 2,700 ppm during initial run. The board sometimes throws “Inspect Cell” during the first low-salt event. Fix salt, then reset.
- Cyanuric acid above 100 ppm. Very high stabilizer can cause the cell’s self-diagnostic test to misread. Partial drain and refill to bring it down.
Still stuck?
If you’ve checked all five items and the cell still won’t produce, send PST Pool Supplies a photo of the AquaRite display, a salt test result, and a free-chlorine test result. We can usually pinpoint whether you’re looking at a cell warranty case or one more chemistry adjustment.
