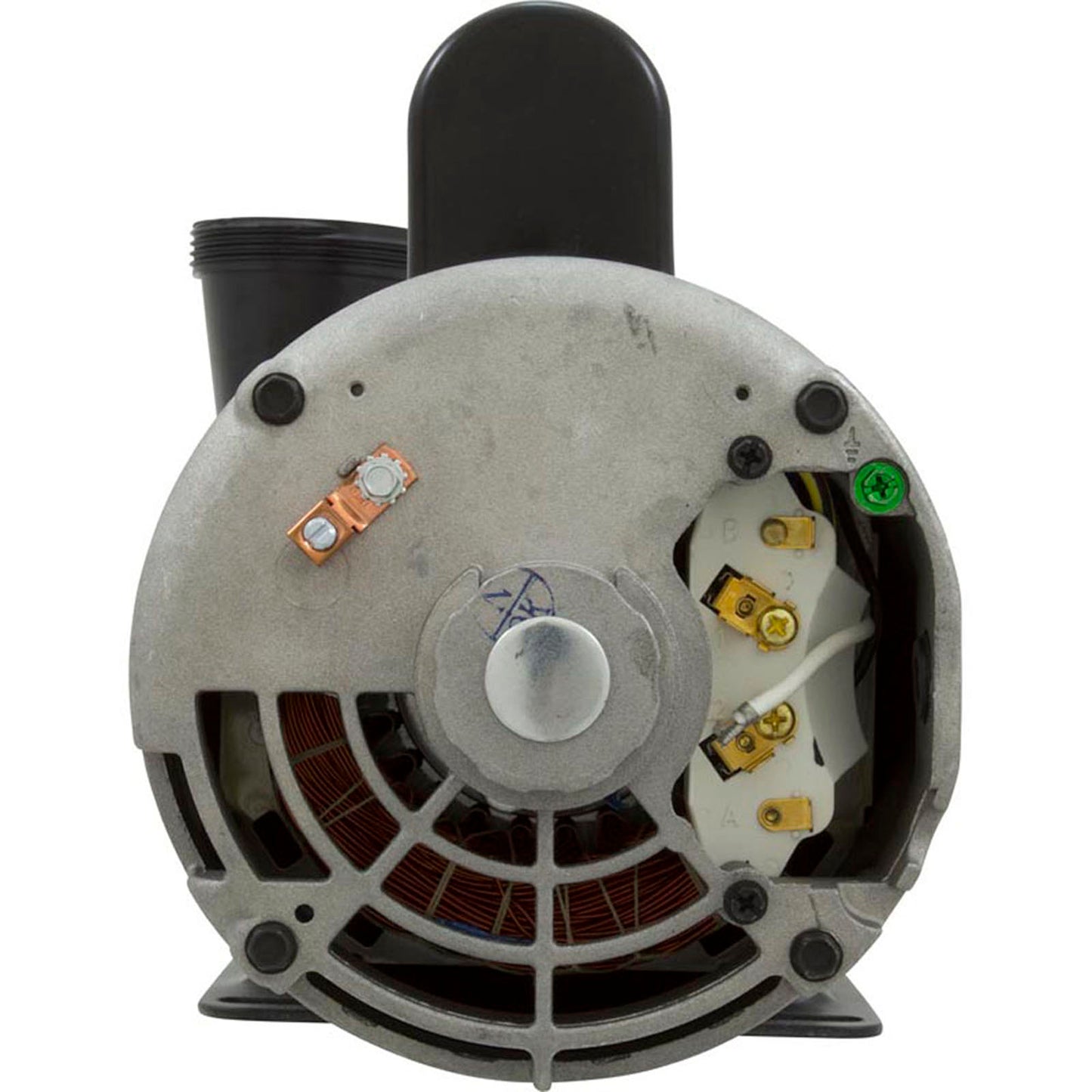

Pump, WW Exec, 5.0hp, 230v, 1-Speed, 56fr, 2", OEM

(No reviews yet) Write a Review
$606.50
$404.30
(You save $202.20 )
SALE ALERT!
SKU:
PST-34-270-3582
MPN:
3712021-1D
Condition:
New
Availability:
Shipping:
Estimate in Cart

Description

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.

Spa Pump Features:

  • Executive wet end designed specifically for 56-frame motors.
  • 56-frame motor for added strength, cooler operating temperature, and longer motor life.
  • Large 6-1/2" diameter wet end for higher head pressure.
  • 2" intake for improved flow performance and reduced noise.
  • Wet end can be rotated for easy installation.
  • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life.
  • Two speed motors have four sets of insulated windings for increased efficiency.
  • Dimensions (H x W x L): 9.08" x 8.05" x 14.775".
  • Available in 1 to 5Hp and in single or dual speed.
Product Specifications:
Complete Pump Type
Portable Spa Pump
Speed
1 Speed (1-Spd)
Motor Voltage
230v
Drain Plug Location
3,6,9 o`clock
Pump to Motor Foot Types
4a
Suction Style
Center
Suction Connection (Physical Dimension)
3-1/16"od
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2"
Discharge Style
Side
Discharge Connection (Physical Dimension)
3-1/16"od
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
5.0hp
Motor Frame
56 Frame Thru-Bolt
Motor Amperage/Wattage
16.4A
Manufacturer
Waterway
Pump Model
Executive
Manufacturer Impeller Number
310-4180
Volute Fastening Type
8 Screws
Volute/Sealplate Number
315-1240
Manufacturer Wet End Number
310-1750

Warranty Information

12 Months

Other Details

Warehouse Location:
Tucson, AZ | Memphis, TN
Manufacturer:
Waterway Plastics
