Description

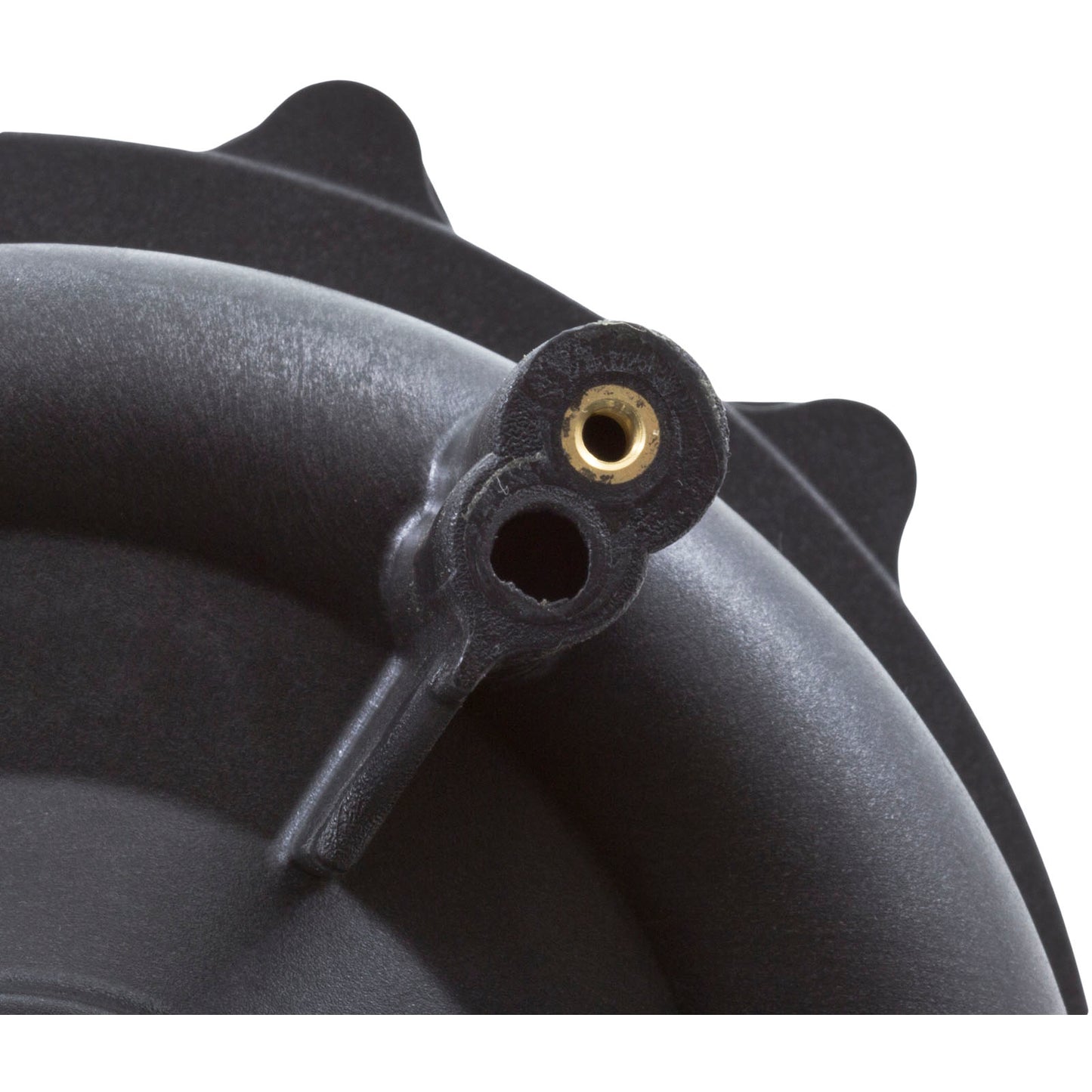

Waterway Executive Wet End.
Side discharge, 2"mbt suction/discharge, 56 frame wet end for the Waterway Executive pump. This wet end is used with a 3.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.
*Motor and unions sold separately.
Product Specifications:
Pump to Motor Foot Types
4
Motor Frame
56 Frame Thru-Bolt
Drain Plug Location
3,6,9 o`clock
Suction Auxillary Port
None
Suction Style
Center
Suction Connection (Physical Dimension)
3-1/16"od
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2"
Discharge Auxilary Port
None
Discharge Style
Side
Discharge Connection (Physical Dimension)
3-1/16"od
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
3.0hp
Manufacturer
Waterway
Pump Model
Executive
Manufacturer Impeller Number
310-4200
Volute Fastening Type
8 Screws
Volute/Sealplate Number
315-1240
Warranty Information
12 Months
