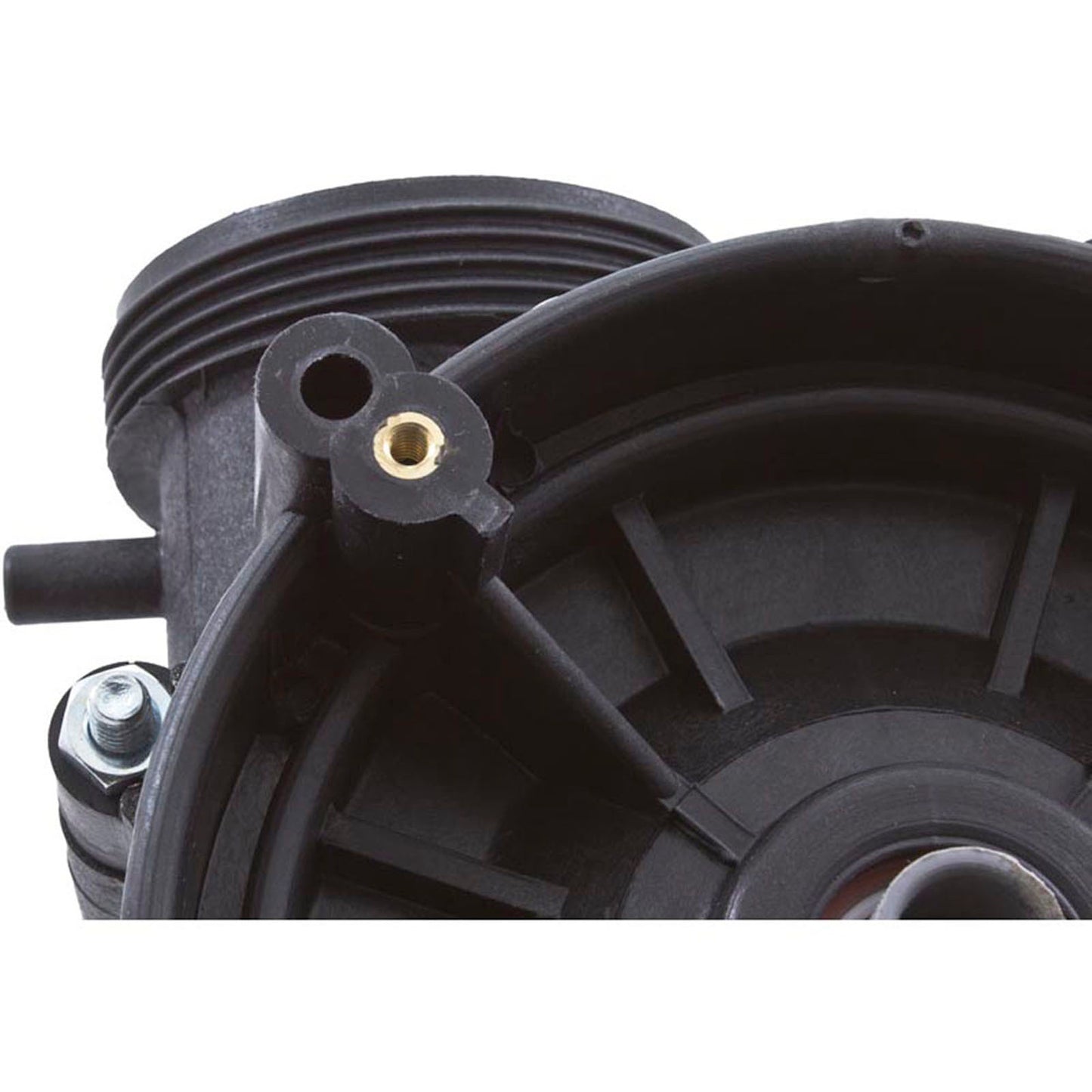

Vico/Balboa Water Group Ultima Wet End
BWG Ultima series high performance pumps (Formerly known as Vico®) come in many different styles and HP's. They are found throughout the industry and are used by many different spa manufacturers. This side discharge, 2"mbt, 48 frame wet end is used with a 4.0hp thru-bolt style motor. The motor used may be either a single or dual speed. The complete wet end includes: the volute, seal, impeller, wear ring, volute o-ring, seal plate and bolts and nuts.
*Motor and unions sold separately.
Product Specifications:
Pump to Motor Foot Types
1a
Motor Frame
48 Frame Thru-Bolt
Drain Plug Location
6 o`clock
Suction Auxillary Port
3/8" barb (b) 1ea.
Suction Style
Center
Suction Connection (Physical Dimension)
3-1/16"od
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2"
Discharge Auxilary Port
3/8" barb (b) 1ea.
Discharge Style
Side
Discharge Connection (Physical Dimension)
3-1/16"od
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
4.0hp
Manufacturer
Vico/Balboa
Pump Model
Ultima
Manufacturer Impeller Number
1212221 black/green/red
Volute Fastening Type
4 Bolts
Volute/Sealplate Number
1211008
Warranty Information
12 Months
