Description
Balboa Water Group Wet End

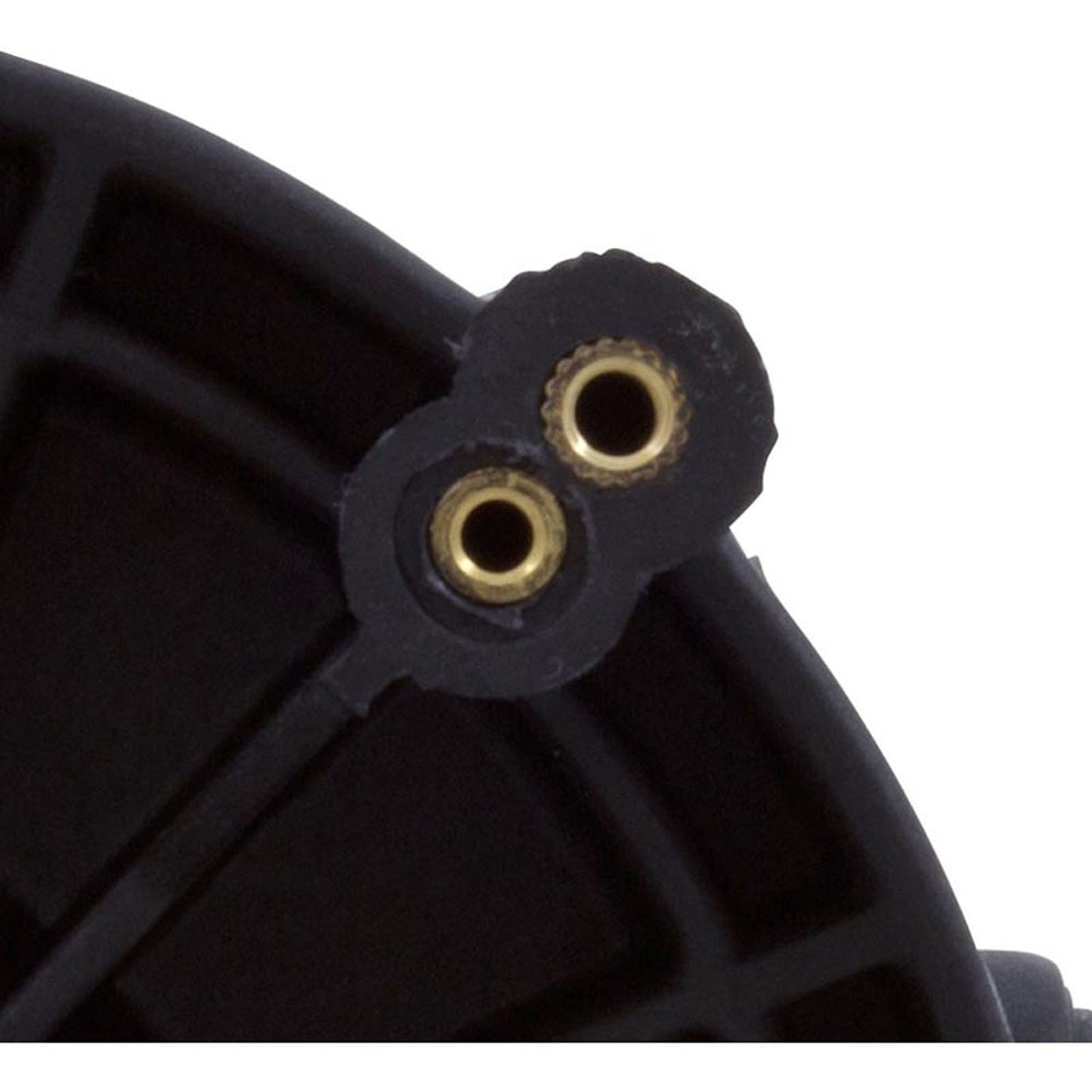

Side discharge, 2"mbt suction/discharge, 48/56 frame wet end for Dura-Jet pump. This wet end is used with a 2.0hp, 48 or 56 frame thru-bolt style motor. The motor used may be either a single or dual speed. The wet end can be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.Motor and unions sold separately.
Product Specifications:
Manufacturer
Balboa Water Group
Pump Model
Dura-Jet DJ Series
Motor Frame
48 Frame Thru-Bolt, 56 Frame Thru-Bolt
Drain Plug Location
3,6,9 o`clock
Suction Style
Center
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2"
Discharge Style
Side
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
2.0hp
Volute Fastening Type
4 Bolts and 4 Nuts
Warranty Information
12 Months
Other Details
