Description

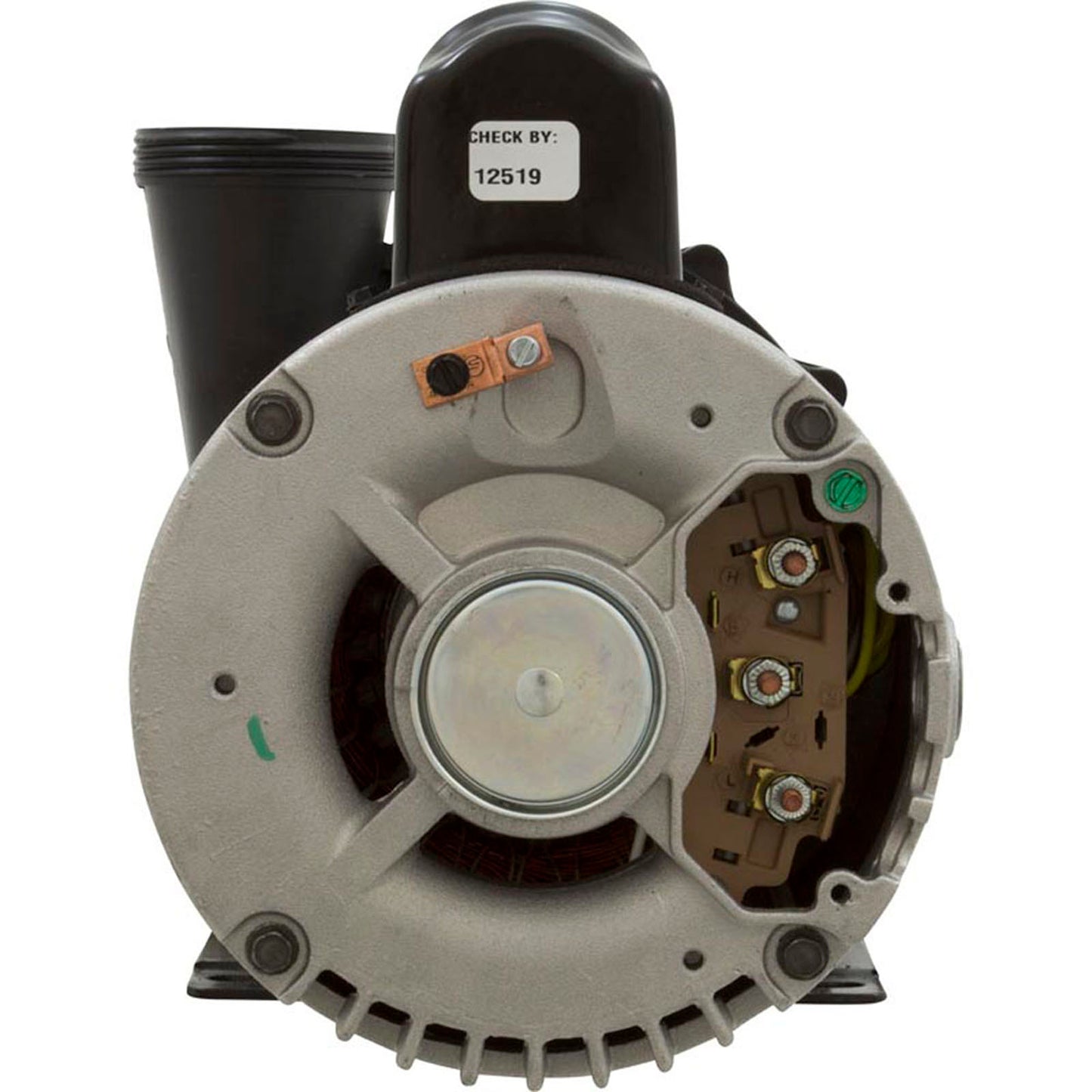

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.
Spa Pump Features:
- Executive wet end designed specifically for 56-frame motors.
- 56-frame motor for added strength, cooler operating temperature, and longer motor life.
- Large 6-1/2" diameter wet end for higher head pressure.
- 2" intake for improved flow performance and reduced noise.
- Wet end can be rotated for easy installation.
- 2 double shielded ball bearings with moisture resistant grease for quieter operation and longer life.
- 2 speed motors have four sets of insulated windings for increased efficiency.
- Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
- California Title 20 Compliant.
Product Specifications:
Complete Pump Type
Portable Spa Pump
Speed
2 Speed (2-Spd)
Motor Voltage
230v
Drain Plug Location
3,6,9 o`clock
Pump to Motor Foot Types
4a
Suction Style
Center
Suction Connection (Physical Dimension)
3-1/16"od
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2"
Discharge Style
Side
Discharge Connection (Physical Dimension)
3-1/16"od
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
5.0hp
Motor Frame
56 Frame Thru-Bolt
Motor Amperage/Wattage
16.4A/4.8A
Manufacturer
Waterway
Pump Model
Executive
Manufacturer Impeller Number
310-4180
Volute Fastening Type
8 Screws
Volute/Sealplate Number
315-1240
Manufacturer Wet End Number
310-1750
Warranty Information
12 Months
