Description

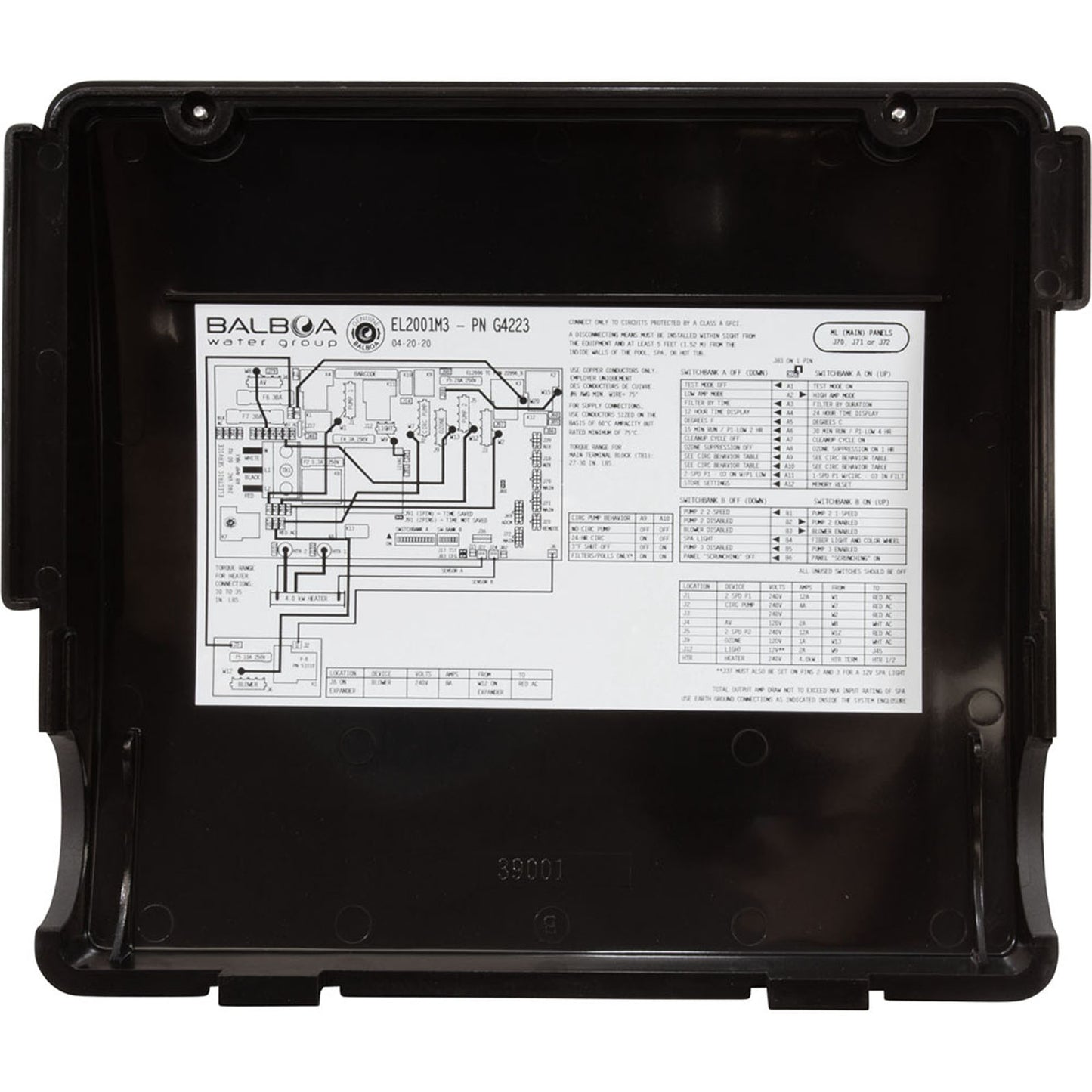

Control, Genuine BWG EL2001M3, P1 (2) , P2 (2) , Bl, 4kW, 115v/230v
Balboa EL2001M3 Control System with 4.0kW Heater
The Elite Series (EL) family of hot tub control systems were designed using Balboa's patented M7® temperature and water flow sensing technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control.
The systems have a plastic enclosure to eliminate water intrusion. Connectors are built on to the circuit board minimizing wires and simplifying service.
FEATURES:
- State of the art design.
- Supports Balboa ML Panels.
- Multi-level diagnostic capabilities M7® flow and temperature sensors.
- All models feature convertible component outputs that can be wired for 120 or 240 volts.
Product Specifications:
Number Of Appliances
3
Manufacturer
Balboa Water Group
Model
EL2001M3
Supply Voltage
230v - 4 Wire
Heater Type
Fixed - Bottom
Heater Wattage
4.0kW
Topside Included
None
Circ Pump Ready
Yes 115v/230v
Auxiliary Topside Ready
Yes
Fiber Optic
Yes
Accessory Ready
No
Wi-Fi Compatible
No
50/60 HZ
60Hz
