Description
Product Features:
- New! Molded/colored receptacles
- New! Molded/colored cords
- Compact universal size
- 2-speed pump circuit with 48" cord
- Air blower circuit with 48" cord
- Air buttons & tubing
- 115 volt light circuit
- 24 hour timer with mode switch
- Full range thermostat
- Corrosion resistant heater housing
- Pressure switch controlled heater
- Hi limit protected heater
- 115 volt ozone circuit with 48" cord
- 4.5kW, 230 volt heater operation
- Reversible water flow
- Heater ON light
- Heater disconnect unions
- Detailed operation manual
- 1 year parts warranty
- UL and ETL recognized
Note: R designation identifies the product as Reversed (i.e. 500-T-CR)
Control Box Dimensions:
- Height: 6"
- Width: 14"
- Depth: 6"
Product Specifications:
Number Of Appliances
2
Appliance #1
2-spd Pump 230v Only
Appliance #2
Blower 115v Only
Manufacturer

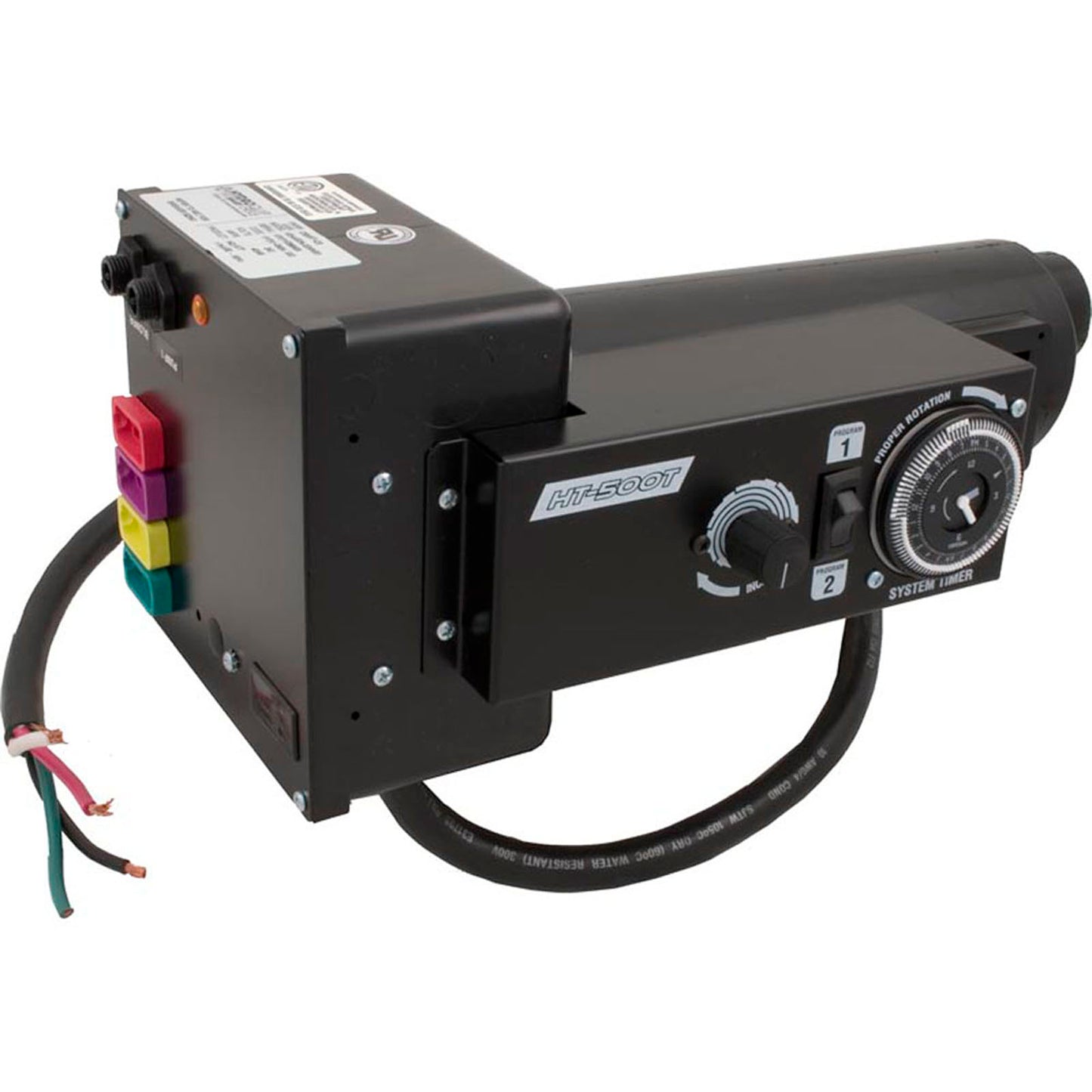

HydroQuip
Model
CS500T-C9
Heater Type
L Shape (All in One)
Heater Wattage
4.5kW
Supply Voltage
230v
GFCI
No
Topside Included
None
Light
115v
Timer
Yes
Warranty Information
12 Months
Other Details
